Modula Flexibox
High-Performance Automated Storage and Retrieval System
Modula Flexibox is a specialized VLM (vertical lift module) designed for high-speed, bin-based order fulfillment. Its use of standardized bins enables incredibly fast throughput and also makes the Flexibox fully compatible with the components of a modern automated warehouse, including conveyors, AGVs (Automated Guided Vehicles), AMRs (Autonomous Mobile Robots), and robotic picking arms. This makes the Modula Flexibox an ideal solution for a wide range of industries including automotive, pharmaceutical, e-commerce, and 3PL (third-party logistics), where fast and accurate handling of small parts or products is key.
How The System Works:

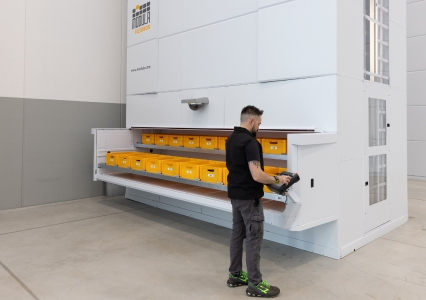

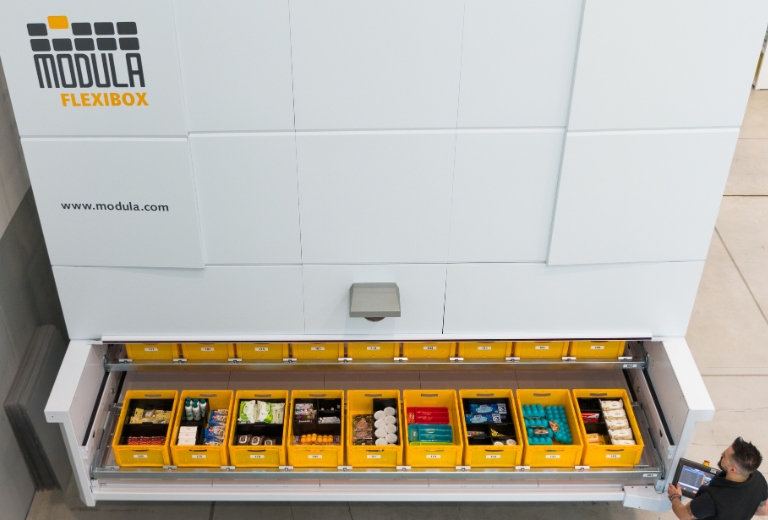

The Modula Flexibox VLM machine stores standardized bins on trays within its vertical structure, with each tray capable of holding multiple bins. When an order is placed, a central elevator retrieves several bins at once, which are then delivered to the picking bay on a service tray. This process allows for the fulfillment of multiple order lines in a single cycle, dramatically increasing throughput and reducing operator waiting times.
Benefits:
- High-Speed Retrieval: Its can retrieve multiple bins simultaneously and deliver them to the bay reducing operator wait times and boosts throughput.

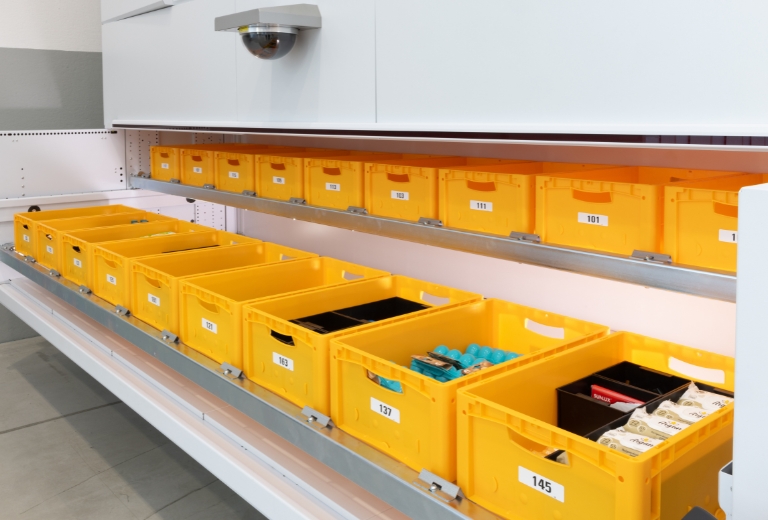

- Bin-Based Storage: Unlike traditional VLMs that handle full trays of various-sized items, it is designed with standardized 600 x 400 mm bins or totes.
- Smart Order Preparation Mode: The system can use idle time to pre-stage trays based on incoming orders, ensuring that items are ready for picking as soon as an operator is available.
- Scalability: The modular design allows flexibility and future expansion by adding more trays or increasing the height of the unit as needs grow.
- Integration with Automation: It is designed to work seamlessly with other automation technologies like conveyors, Automated Guided Vehicles (AGVs), and collaborative robots (cobots).
| Unit Height Range | 10.8 – 65.6 ft | 3.3 – 20 m |
| Unit Height Increments | 7.9 in | 200 mm |
| Bin Dimensions | 15.7 x 23.6 in | 400 x 600 mm |
| Max. Bin Payload | 77.2 lbs | 35 kg |
| Bin Height Range | 4.7 – 16.5 in | 120 – 420 mm |
Download the brochure for more information about Modula Flexibox. If you have any questions, or require a specific solution for your needs, contact us today.
