Modula Next
Automated Storage and Retrieval System

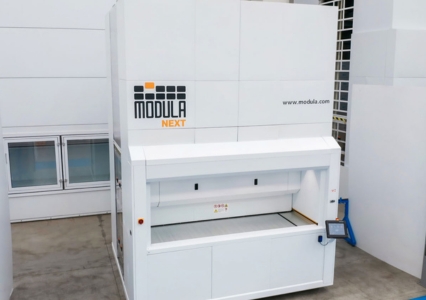

Modula Next is an advanced vertical lift module (VLM) that combines the precision of an industrial vending machine and the minimal footprint of a VLM. It features a system of mobile shutters that only grant access to a single, specific item on a tray.
Its ability to provide controlled, single-item access and traceability makes it ideal for industries like aerospace and automotive, for managing critical parts, healthcare and pharmaceuticals, for securing and dispensing medical supplies, and even luxury retail, for protecting high-value goods.
How The System Works:

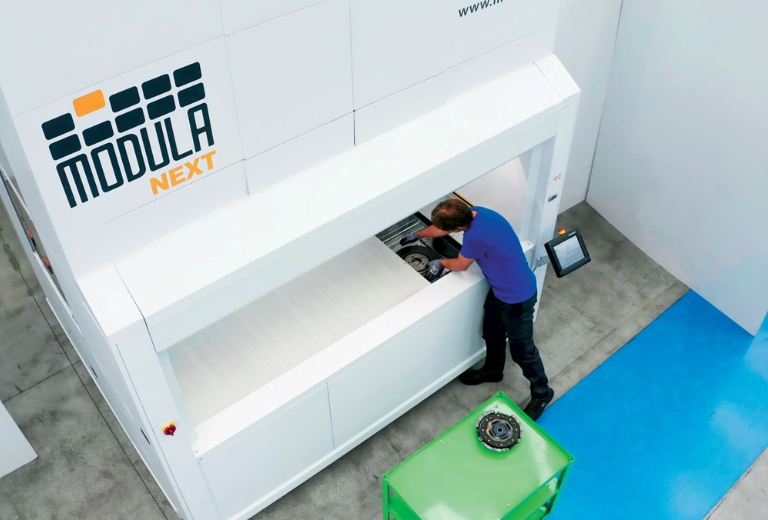

The Modula Next VLM machine operates like a traditional vertical lift module but with a key added feature for security and accuracy. When an item is requested, the VLM retrieves the correct tray from the vertical storage unit and brings it to an ergonomic picking bay.

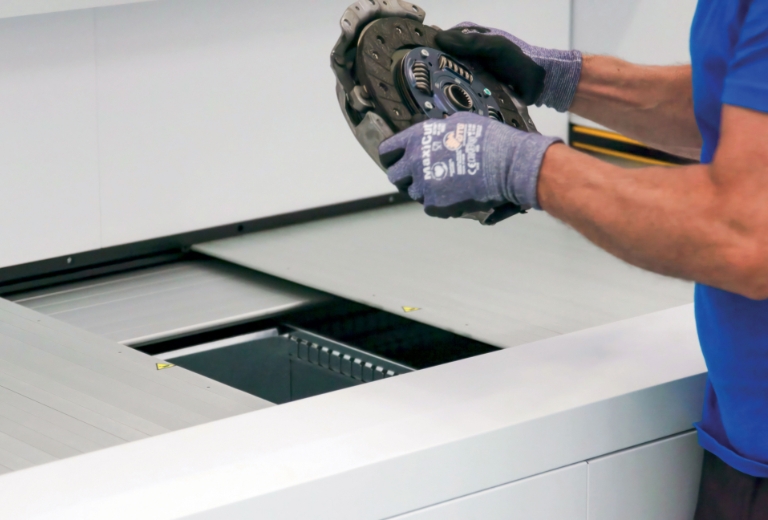

What makes Modula Next unique is that it uses a system of mobile shutters that opens a window to only the specific compartment containing the requested item. This innovative design eliminates picking errors and provides an extra layer of security, as only one item can be accessed at a time.
Benefits:
- Zero Picking Errors: By only allowing access to a single item at a time, the risk of picking the wrong item is eliminated.
- High Security: Controlled access and real-time tracking make it an excellent solution for industries with strict security standards, such as pharmaceuticals, aerospace, and electronics.
- Optimized Inventory Management: Real-time data and tracking reduce stock loss, prevent overbuying, and streamline reordering.
- Improved Ergonomics: The “goods-to-person” principle brings the requested tray to the operator at an ergonomic height, reducing physical strain and improving safety.
| Tray Width | 98.42 in | 2,500 mm |
| Tray Depth | 25.75 in | 654 mm |
| Max. Product Height | 9.65 in | 245 mm |
| Compartment Heights | 1.77-2.76 in 5.72-6.69 in 7.68-9.65 in |
45-70 mm 145-170 mm 195-245 mm |
| Max. Net Capacity Per Tray | 1,102 lb | 500 kg |
| Unit Footprint | 115.59 x 117.56 in | 2,936 x 2,986 mm |
| Min. Picking Window Size | 3.94 x 3.94 in | 100 x 100 mm |
| Max. Picking Window Size | 98.43 x 25.75 in | 2,500 x 654 mm |
Download the brochure for more information about Modula Next. If you have any questions, or require a specific solution for your needs, contact us today.
