Modula Slim

Compact Automated Vertical Storage

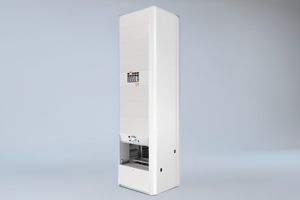

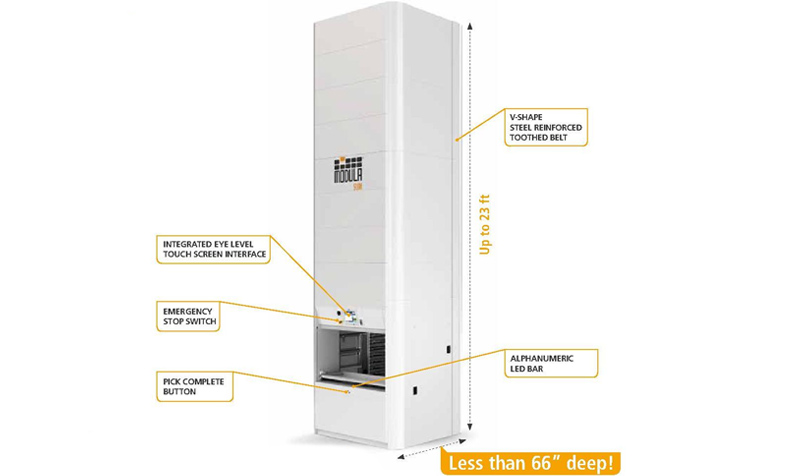

Modula Slim: Compact, white automated storage solution with large door.

The Modula Slim is a compact automated vertical lift module designed to fit in 3m2 of floor space. Built on a pre-assembled base module which is easy to move and quick to install, the Modula Slim can be set up and ready to use in 48 hours. It is a vertical storage solution with complete flexibility.

How The System Works:

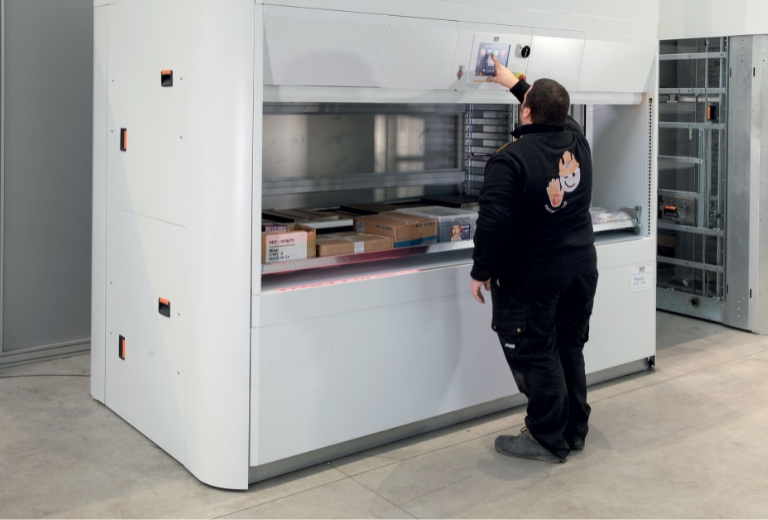

A user-friendly touch screen interface and simple controls make this a simple-to-use system. This reduces the training time and ensures that the system can be used by anyone in your facility in a matter of days.

Dynamic tray height storage reduces wasted space between trays ensuring you are making use of all available storage space. The Slim also offers relatively low energy consumption and a limited maintenance design.

Some of the benefits of the Modula Slim are

  • Floor space recovery of up to 90%.
  • Increased security through enclosed storage.
  • Time-saving & improved efficiency by offering automated storage and retrieval of products and goods.
  • Reduced risks by bringing the goods and products to the employee rather than vice versa.
  • Boosted inventory management.

Unit height: from 2.400 mm to 7.000 mm

Unit height increment: 100 mm

Tray storage pitch: 25 mm

Tray widths: 1.300 – 1.900 – 2.500 mm

Tray depth: 425 mm

Net tray payload: 350 kg

Total gross payload: 25.000 kg

Maximum storage height: 650 mm

Bay delivery level height: 835 mm

Tray wall height: 45 mm

Throughput: up to 190 trays/hr (depending on the configuration)

Operator interface: 10.4” touch screen industrial console (Copilot)

Number of bays: 1

Types of bay: internal with single delivery level

Low energy consumption: 1.2 kW/h for SLIM 1.3 model, H=7.000 mm

Power supply: 230V single-phase and 400V three-phase

Certification: TÜV-GS

V-shape steel reinforced toothed belt transmission (4 belts)

If you’re looking for more information or are ready to get started with a Modula Slim, check out our pdf downloads. If you find that you still have questions or would like some advice, feel free to contact us at Hi-Cube for assistance.

Download Now

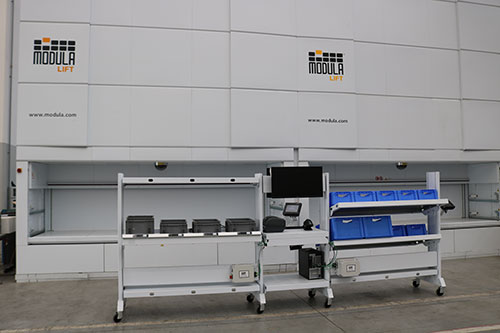

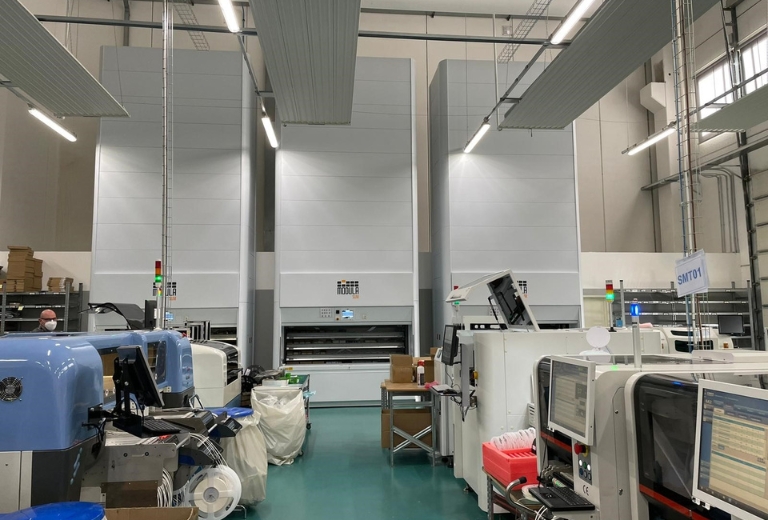

Take a look at some of our Modula Slims below.
